LAMILUX Rooflight F100 W

The PVC framed dome rooflight with maximum stability and rigidity


domed rooflight fixed

The Rooflight F100 W offers a cost effective design structured with a wave shaped shell designed to increase the rooflights rigitity and load bearing. With high levels of wind and rain resistance, excellent air tightness values and enhanced isothermal characteristics, this rooflight is designed to perform and stay watertight in all weather conditions. Suitable for natural daylight, daily ventilation, and optionally available as a smoke vent, the wave shaped dome Rooflight F100 is an ideal addition for flat roof commercial or industrial building projects, and School new builds increasing daylight transmission into the building with the 90mm splay on the kerbs compared to traditional vertical timber kerbs.


Features and benefits

Quality

• CE marked quality according to EN 14351 with CE Label product declaration

• Factory production approved to ISO 9001:2015, which means the quality products are manufactured to a consistently high standard

• Fully factory assembled rigid dome rooflight - producing a superior quality product that reduces on-site installation time

• Enhanced isothermal characteristics in the overall construction – resulting in achieving maximum energy efficiency and thermal insulation

Design

• Thermally broken PVC frame free of thermal bridges saving heating costs

• Cost effective dome rooflight design without compromising on the high level of wind and driving rain resistance and benifitial isothermal characteristics

• GRP heat-insulated upstand with seamless silk-white interior finish removes the need of internal plastering

• Rooflight delivered pre-assembled to GRP upstand - removing the need for creating timber upstands on site

Comfort

• Even spread of difussed daylight with a light transmittance value of 42% (reference triple layered)

• Effective acoustics and soundproofing with a sound insulation value of Rw,p 21dB (reference triple layered)

• Excellent U-values supporting whole dome rooflight efficiency - Urc product U value including upstand: 1.3 W/m² K  (ref F100D-S14)

• Dome rooflight provides pleasant indoor climate thanks to optional natural ventilation

Use

• Suitable for increasing daylight transmission into flat roof commercial, industrial or school buildings

• Adapt perfectly to every project whether an education building, industrial hall or manufacturing warehouse

• High-quality, energy-efficient rooflight domes creating light-flooded buildings, positive working atmospheres and happy people

• Cost effective way of increasing natural daylight and ventilation into a building

Standard offering


LAMILUX have selected the most popular specifications to form a standard range in the domed Rooflight F100 W range, with faster delivery times. Simply relay the below product codes when discussing your rooflight dome requirements with the LAMILUX team.

cross section of glazing

Glazing: triple layered opal

• Polycarbonate triple layered
• Opal domed glazing
• ACR[M] Class B Non-fragile
• Ut value: approx. 2.0 W/(m²K)
• Sound insulation: c. 21 dB
• Light transmittance: c. 42 %
• Energy transmission: c. 0.42

square upstand image

Upstand: 300mm high

• GRP heat-insulated upstand
• PVC cap flashing included
• Seamless silk-white interior finish
• Heat-resistant for hot melt processes
• Pre-assembled for quick and easy          installation

Isothermal diagram of framework

Framework: white PVC

• Thermally broken PVC frame
• RAL 9016 - White
• 10° isotherm line for consistent heat       insulation

Fixed dome rooflight (non opening)

rooflight dome fixed

Product code

Structural roof    opening size

flat roof skylight

F100D-S5-F

900 x 900mm

flat roof skylight

F100D-S6-F

900 x 1200mm

flat roof skylight

F100D-S8-F

1200 x 1200mm

flat roof skylight

F100D-S14-F

1000 x 1500mm

Rooflight opening for natural ventilation

opening rooflight dome

Product code

Structural roof    opening size

flat roof skylight

F100D-S5-O

900 x 900mm

flat roof skylight

F100D-S6-O

900 x 1200mm

flat roof skylight

F100D-S8-O

1200 x 1200mm

flat roof skylight

F100D-S14-O

1000 x 1500mm

spindle drive

Standard: ventilation details

• 230v spindle motor
• 300mm stroke length

For more ventilation options use the product configurator tool

Consideration must be made on rooflight installation within pitched roofs regarding hinge position orientation - please speak to a sales advisor for guidance

Specification and Drawing Downloads

F100D-S5-F

900x900mm - Fixed

skylights

F100D-S6-F

900x1200mm - Fixed

skylights

F100D-S8-F

1200x1200mm - Fixed

skylights

F100D-S14-F

1000x1500mm - Fixed

skylights

SPECIFICATION

Opening version

NBS logo

F100D-S5-O

900x900mm - Opening

skylights

F100D-S6-O

900x1200mm - Opening

skylights

F100D-S8-O

1200x1200mm - Opening

skylights

F100D-S14-O

1000x1500mm - Opening

skylights

Rooflight opening for smoke ventilation

EN 12101-2 certified smoke ventilation rooflight product variants

If standard is not what you're looking for

Use the product configurator tool to discover more sizes and options

Design details

Rooflight F100 W technical design characteristics


Energy efficiency

The Rooflight F100 W is the PVC framed square or rectangle shaped domed rooflight with a wave design shell for increased rigidity. Boasting maximum energy efficiency and thermal insulation, alongside high levels of wind and driving rain resistance and enhanced isothermal characteristics in the overall rooflight construction – the unrivalled performance of this range results in no condensation alongside excellent air tightness values. The thermally broken “isothermally balanced” PVC frames feature optimally aligned 10° isotherm line. This means that the thermally broken 10° isothermal line remains within the roof light structure (see diagram) for consistent heat insulation without any weak spots, reducing condensation, mould and bacteria. The TIP (Total Insulated Product) is certified in accordance with EN ISO 14021.

Performance

•    CE marked quality according to EN 1873
•    Life Cycle Assessment (LCA) to EN 15804
•    Certified watertightness against heavy and driving rain: DRI 3.0 m²/s                     (reference size 1200 x 1200mm)
•    Wind Load to Class C4, EN 12210
•    ACR[M] Class B Non-fragile (subject to confirmation of dimensions)

Quality control of component manufacture:

•    Energy management system to EN ISO 50001:2011
•    Quality management system to EN ISO 9001:2015

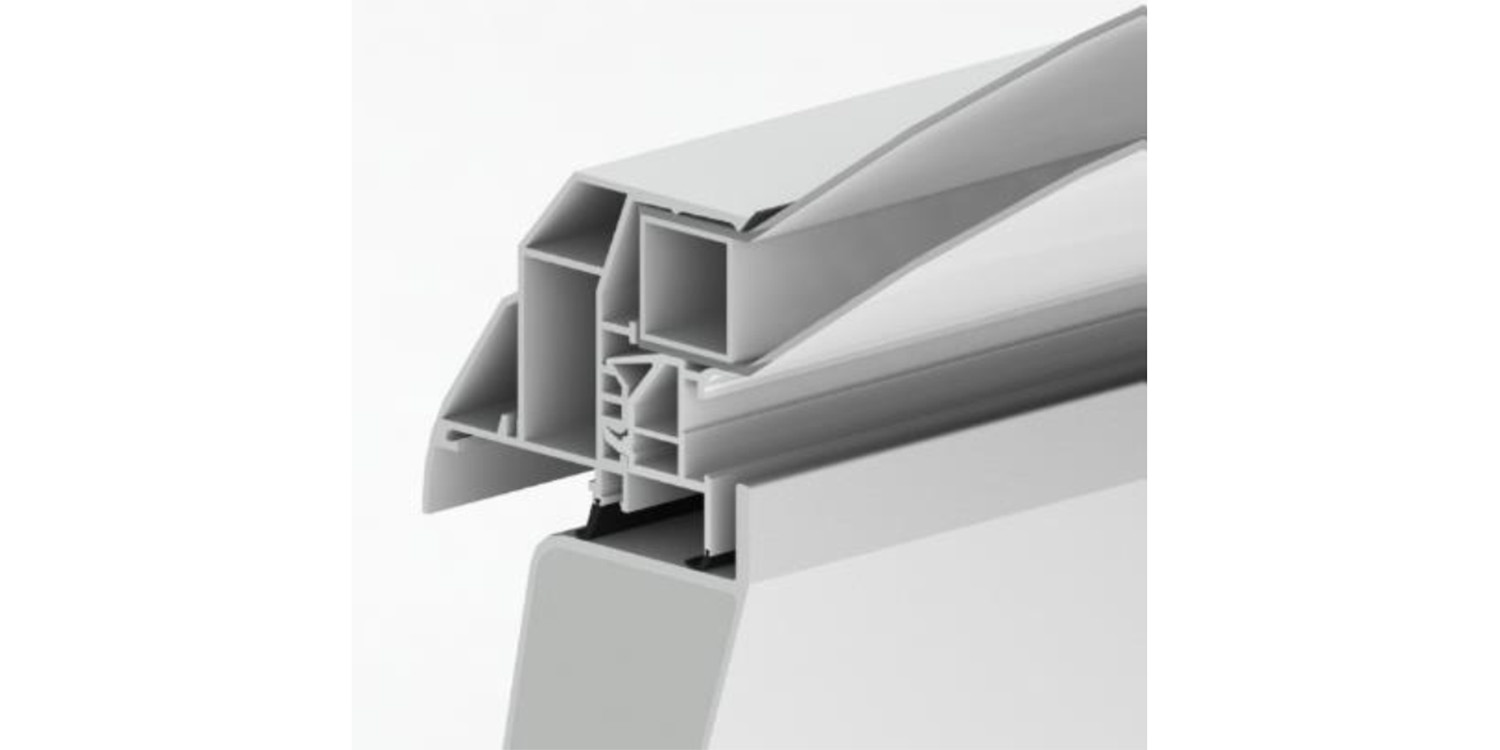

cross section diagram of rooflight with labels
severe weather on rooflights

wave design on rooflight

rooflight dome on flat roof
